288F Inline Horizontal Fiber Optic Splice Closure Outdoor Mechanical Sealing

Product Categories
Shenzhen YHT Broadband Equipment Co. Ltd
Contact Now

288F Inline Horizontal Fiber Optic Splice Closure Outdoor Mechanical Sealing

  • 1
  • 2

Model Number : CH034

Certification : CE, RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 50pcs

Price : USD 19.5-25/PC

Payment Terms : T/T

Supply Ability : 1000PCS/week

Delivery Time : One week

Packaging Details : 4pcs per carton, each carton 60.5*53.5*31cm

Material : PP

Max. capacity : 288cores

Dimension : 580x252x134mm

Max.qty of the tray : 12pcs(each one 24FO)

Cable ports : 4 in & 4 out

Sealing : Mechanical sealing

Contact Now

288F Inline horizontal type waterproof outdoor use fiber optic splice closure

Optic fiber clousure is applied in the junction and protecting of the fiber.It can be place with the aerial cable or buried in earth or put in the pipeline.The outer part and the fusing part of the clousure are made of the project plastic with the virtue.Optic fiber clousure is applied in the junction and protecting of the fiber.It can be place with the aerial cable or buried in earth or put in the pipeline.The outer part and the fusing part of the clousure are made of the project plastic with the virtue.

Product Name
288 cores horizontal closure
Material
PP
Dimension (mm):

580x252x134mm
Color
Black
Max Capacity
288 Cores
cable entry
4 inlet 4outlet
Single Tray
24 cores
Used
For aerial hanged

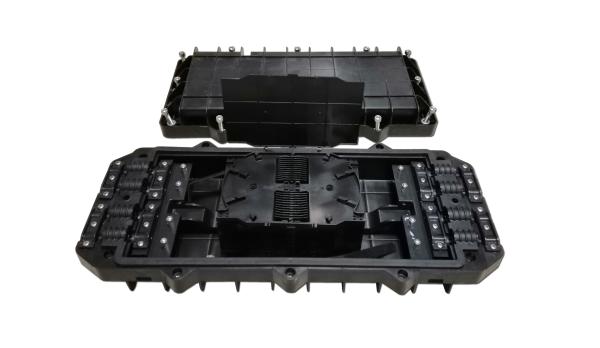

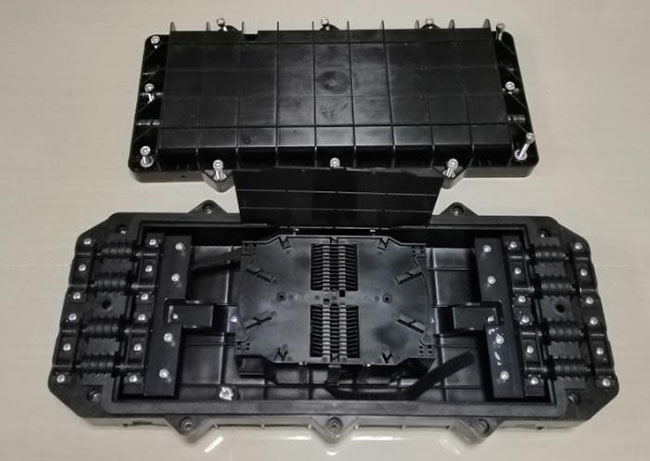

Product picture:

288F Inline Horizontal Fiber Optic Splice Closure Outdoor Mechanical Sealing

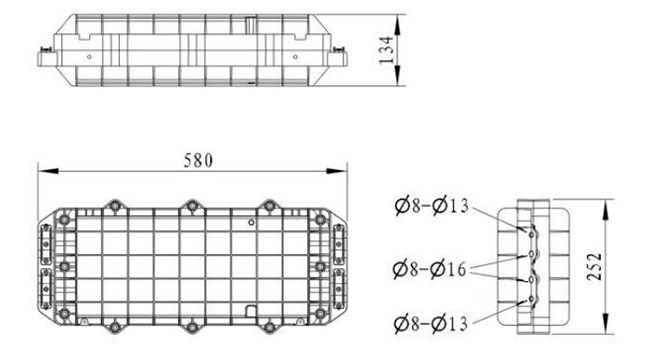

Dimension drawing:

288F Inline Horizontal Fiber Optic Splice Closure Outdoor Mechanical Sealing

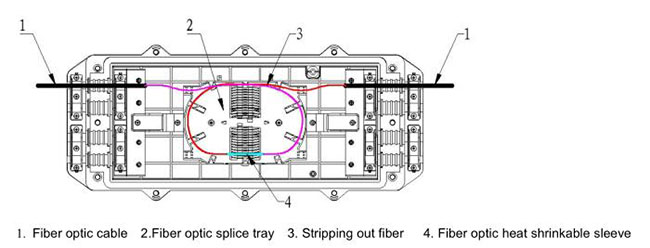

Instruction:

288F Inline Horizontal Fiber Optic Splice Closure Outdoor Mechanical Sealing
