Brand Name : CSYHT/OEM/NM
Model Number : CV016/288C
Certification : CE RoHS ISO
Place of Origin : Shenzhen China
MOQ : 10pcs
Price : USD 9.1 per unit
Payment Terms : L/C, T/T, Western Union
Supply Ability : 5000pcs per day
Delivery Time : 10days
Packaging Details : Carton box
Material : PP + UV plsatic
Dimension : φ228 × 527.5mm
Splice Tray : Max 12pcs cassette 24core
Max. Capacity : 288 fibers
Cable Port : 6 round & 1 big port
Sealing : Heat shrinkable sealing
Application : Outdoor aerial hanged, pole mountable, wall-mount
Service : OEM/ODM Customize available
Usage : Digicom networking FTTH
IP68 Dome FOSC PP+UV Black Color for 288 Fiber Optic Splice Joint Closure
Model: CV016/288c
Describtion:
CV016 is widely applied to the splicing, distributing variable optical cables. It is big capacity, max. 288 fibers. It is made of high quality PP+UV material, the shell and the base open and close by a convinient hoop. The entry ports are sealed by heat shrinkable tube. It can open agian after sealed, reused again without changing the sealing material.
Specifications:
(1) Splice tray: Max. 12pcs, each 24cores
(2) Cable port: 6pcs round port φ19.9mm, 1pc oval port 38x70mm for supporting cable entry without cutting. All cable ports are heat shrink sealing.
(3) Waterproof: IP68
(4) Wall-mounting, aerial hanger and pole holding
(5) Material: high impact resistance PP materials with UV
Model | Splice tray | Fiber core | Dimension(mm) | Weight(Kg) |
CV016 | 12trays, each 24core | 288 fibers | φ228 × 527.5 | 3.31kg |

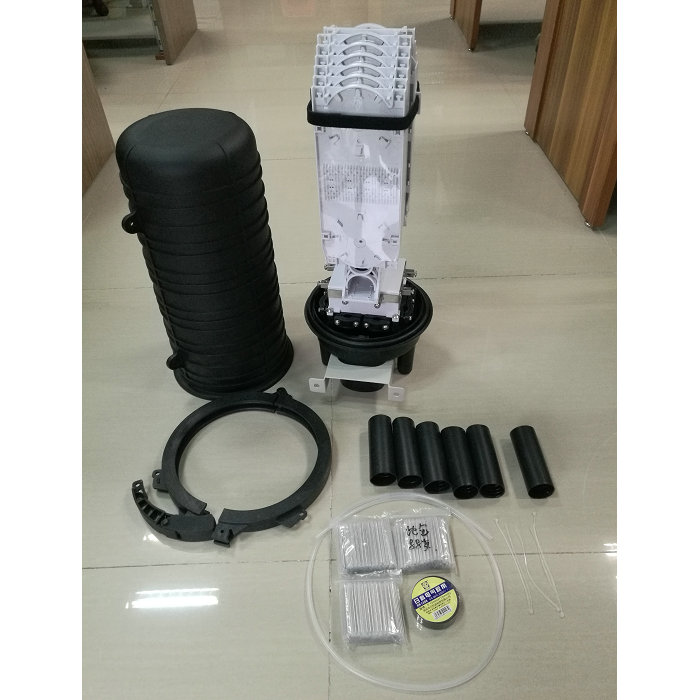

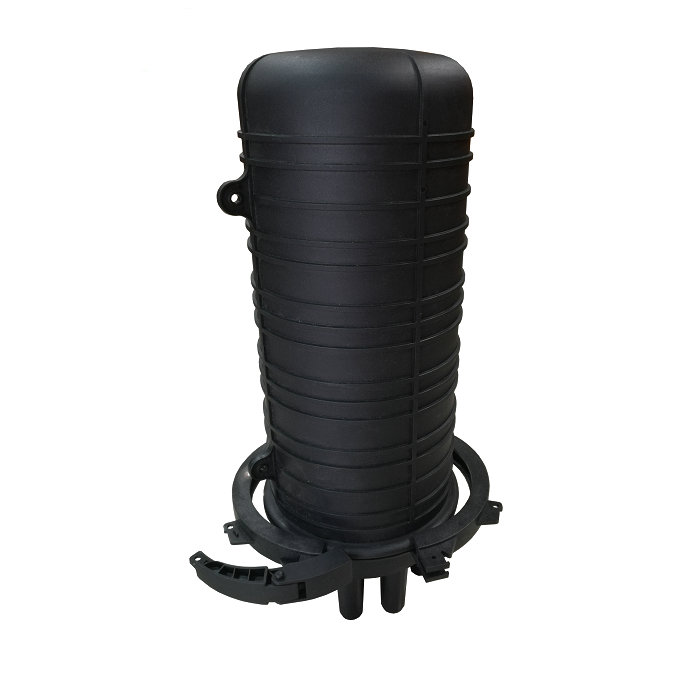

Picture:
![]() |
Dome FOSC PP UV 288 Fiber Optic Splice Closure IP68 Images |
