8mm Cable SC Duplex 12fibers Wall Mounted Splice Module

Name: 8mm Cable SC Duplex 12fibers Wall Mounted Splice Module
Brand: CSYHT
Price: 1 USD

8mm Cable SC Duplex 12fibers Wall Mounted Splice Module Manufactures

Brand Name : CSYHT

Model Number : OTB-C02

Certification : CE, ISO, RoHS

Place of Origin : China

MOQ : 50pcs

Payment Terms : T/T

Supply Ability : 300pcs/day

Delivery Time : 10days

Packaging Details : Carton

Product Name : Fiber Terminal Box

Material : ABS plastic

Color : White Color

Cable Dimension : 8mm

Cable Port : 4 ports

Splicing Capacity : 12 Fibers

Contact Now

Indoor Wall Mounted SC Duplex Adapter Splice Modules Fiber Terminal Box

Description:

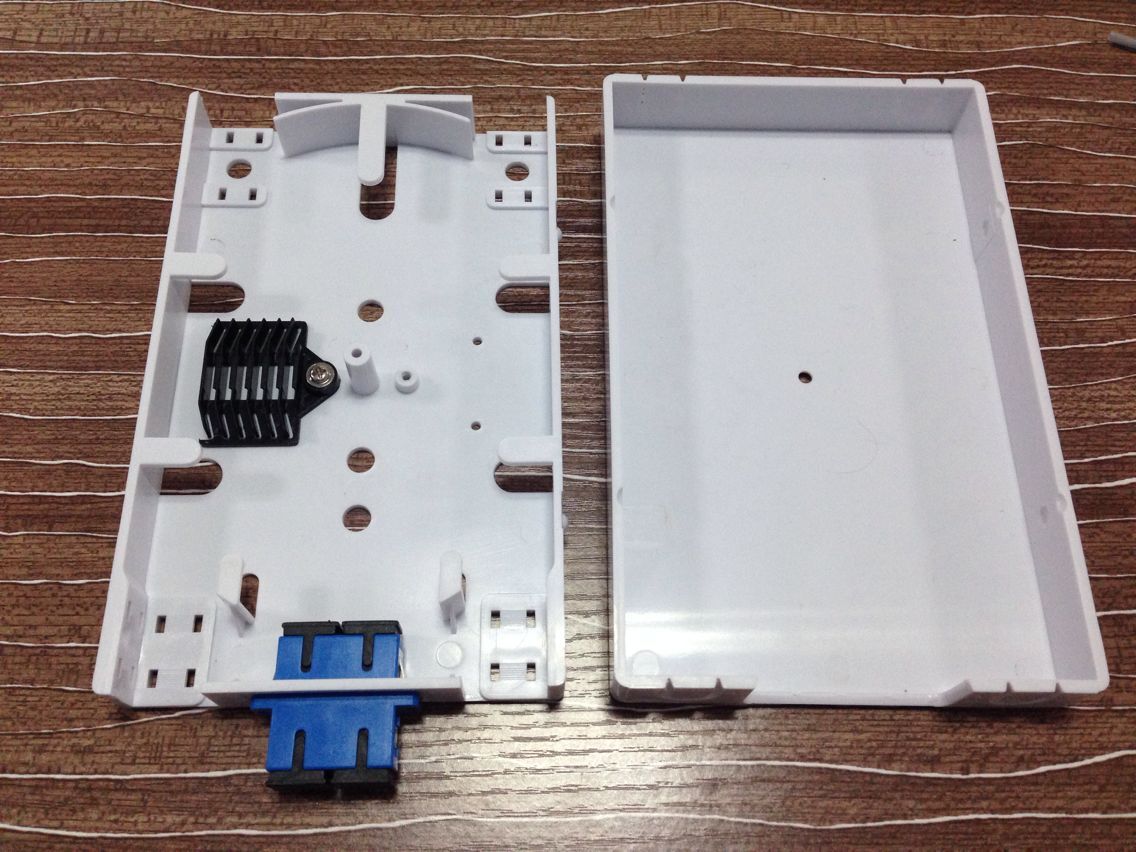

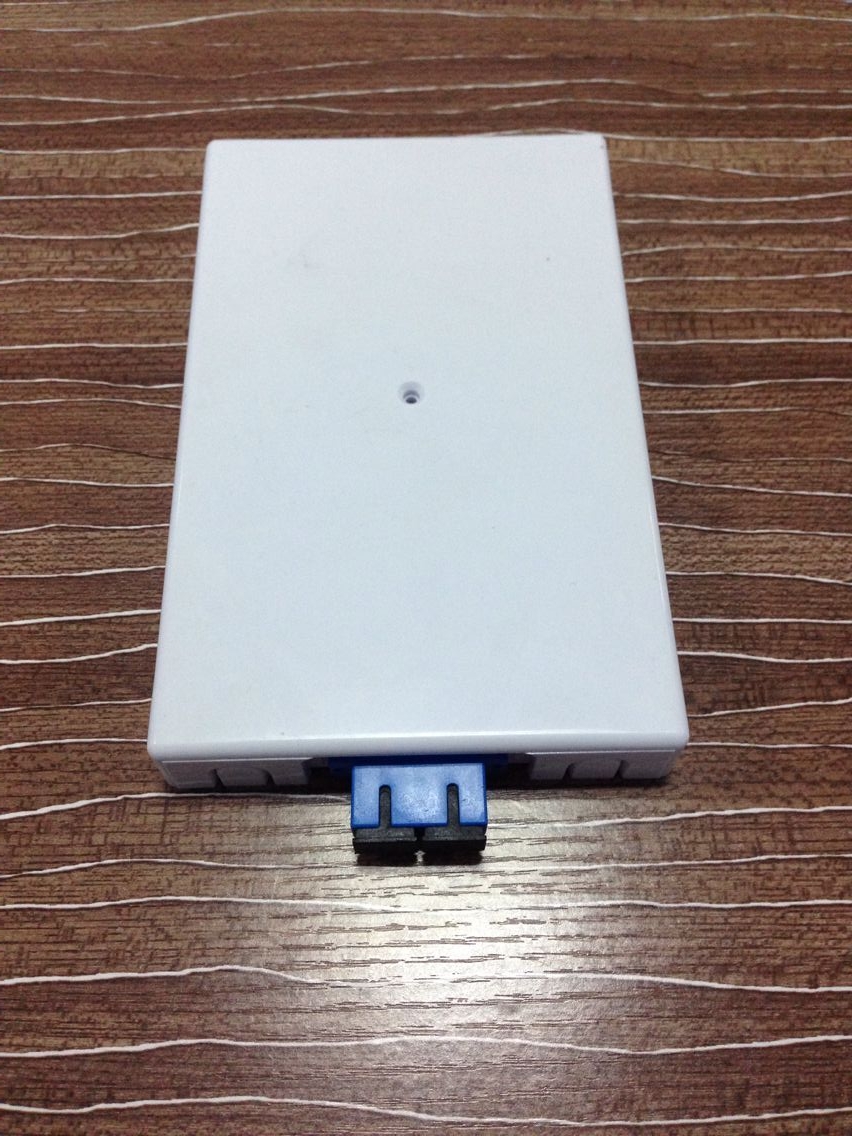

OTB-C02 is an indoor wall mounted fiber optic terminal box that load 1pc SC duplex adapter & 2 splice modules for fiber splicing and distribution.

Features:

Made of ABS plastic, the cover is inserted into base.
Reasonable design, suitable for 1pc SC duplex adapter
4pcs cable entry ports, max cable dimension 8mm, cable can be entry without cutting.
It can be installed on the wall and table.
Used in the end termination of residential building and villas, to fix and splice with pigtails.

Specification:

Model

Dimensiion

W*H*D (mm)

Material

Adapter port

Splicing capacity

Cable port

Remark

OTB-C02

102.8x164x20

ABS plastic

1 SC duplex

12fibers

4 ports φ8mm

cable entry without cutting
