Wall Mounted 4 Fibers SC LC FTTH Optic Terminal Box

Name: Wall Mounted 4 Fibers SC LC FTTH Optic Terminal Box
Brand: CSYHT
Price: 1 USD

Wall Mounted 4 Fibers SC LC FTTH Optic Terminal Box Manufactures

Brand Name : CSYHT

Model Number : OTB-C04

Certification : CE, ISO, RoHS

Place of Origin : China

MOQ : 50pcs

Payment Terms : T/T

Supply Ability : 300pcs/day

Delivery Time : 10days

Packaging Details : Carton

Product Name : FTTH Terminal Box

Material : ABS plastic

Dimension W*H*D (mm) : 150x110x34

Adapter port : 4 pcs

Splicing capacity : 4 fibers

Remark : Indoor wall mounted

Contact Now

4 Fibers Small Size Easy Installation FTTH Mini Optic Terminal Box

Description:

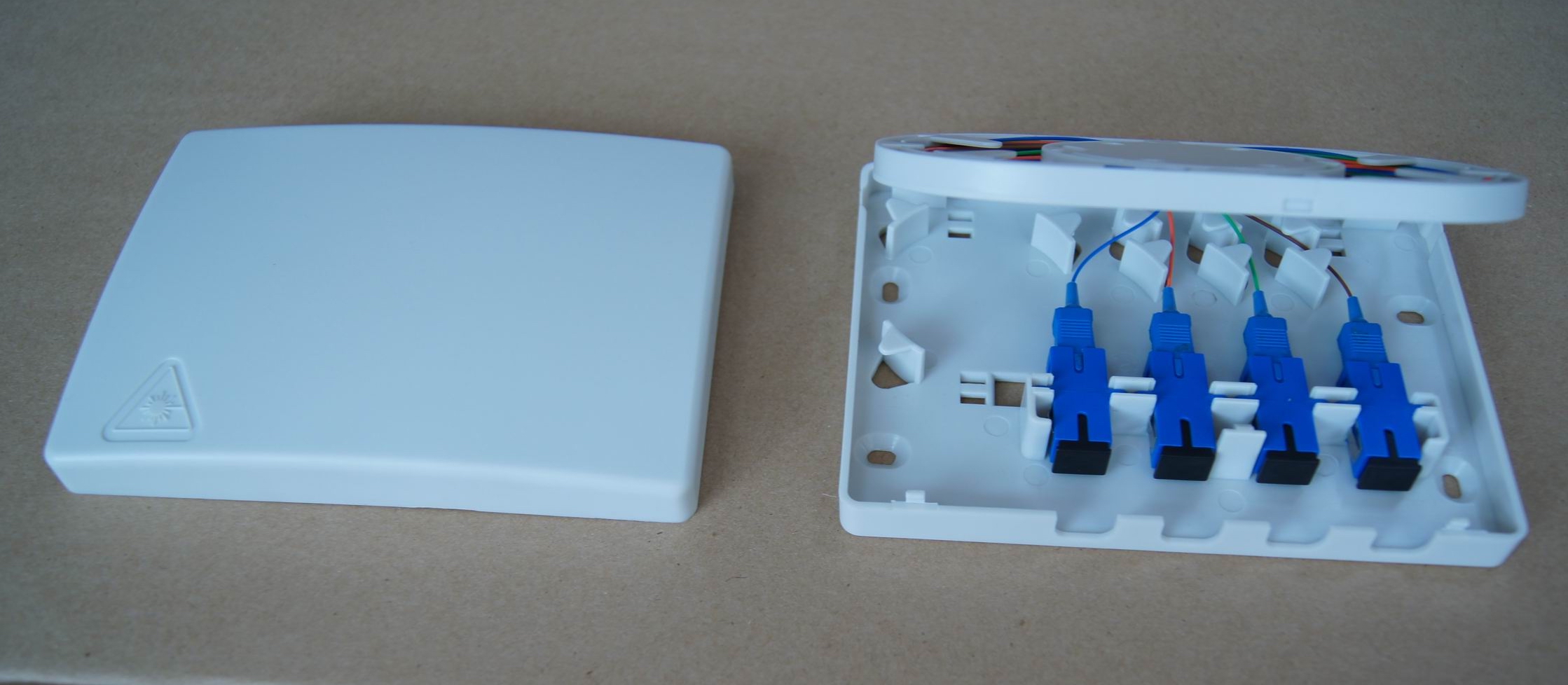

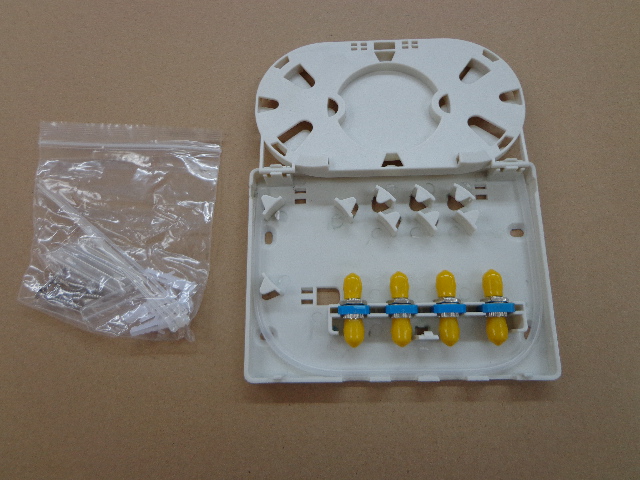

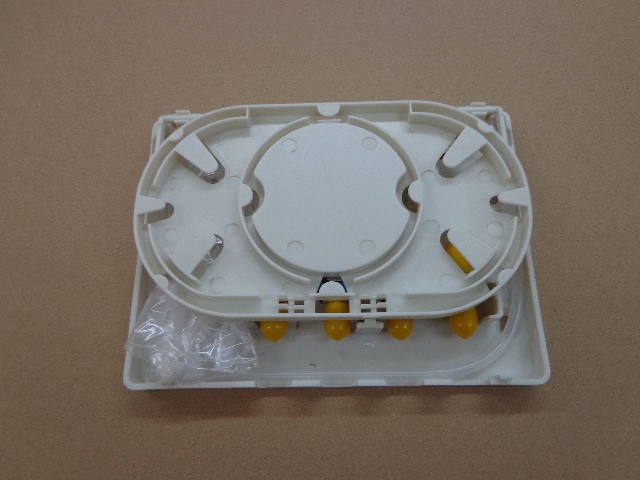

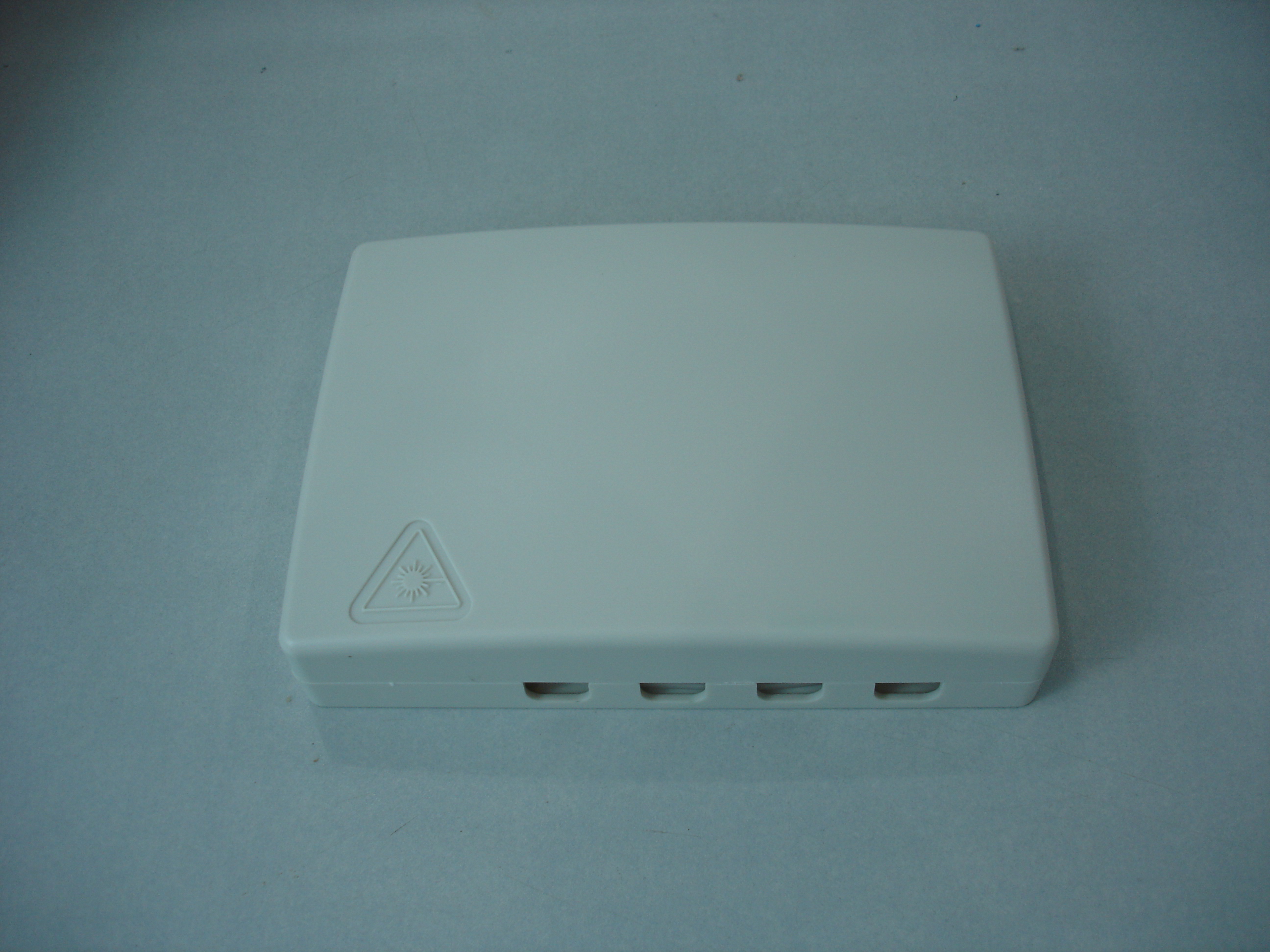

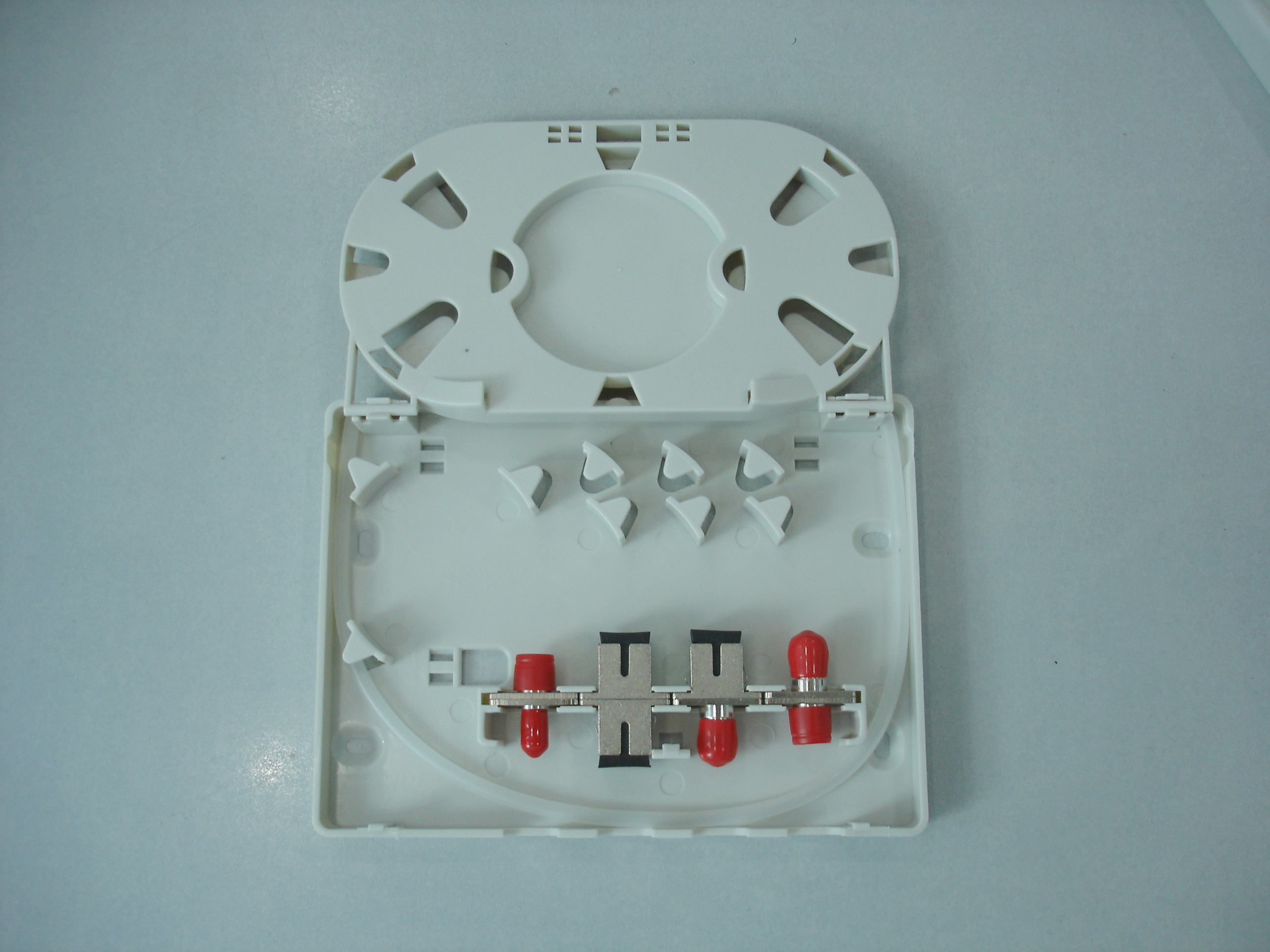

OTB-C04 is an indoor wall mounted FTTH mini optic terminal box, made of high quality ABS plastic, small size, with plastic splice tray inside. It provides an economical way for terminating optical fibers.

Features:

Light weight, small size, easy installation
Can load FC, SC, LC duplex ... adapter
Max. Capacity: 4 fibers
The base and cover of the box adopts self-clip method, it is easy and convenient to open and close.

Specification:

Model

Dimension

W*H*D (mm)

Material

Adapter port

Splicing capacity

Cable port

Remark

OTB-C04

150x110x34

ABS plastic

4 pcs

4 fibers

2 port

Indoor wall mounted

Wall Mounted 4 Fibers SC LC FTTH Optic Terminal Box

Product Tags:

SC FTTH Optic Terminal Box

LC FTTH Optic Terminal Box

4 Fibers Plc Optic Splitter

Wall Mounted 4 Fibers SC LC FTTH Optic Terminal Box Images
